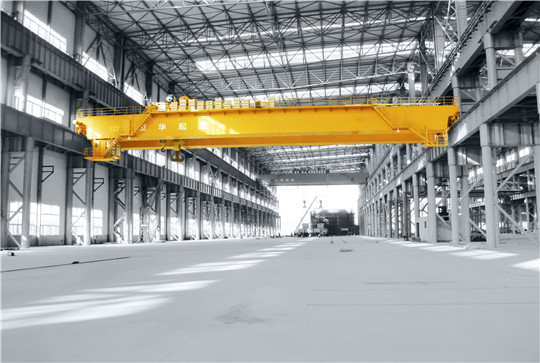

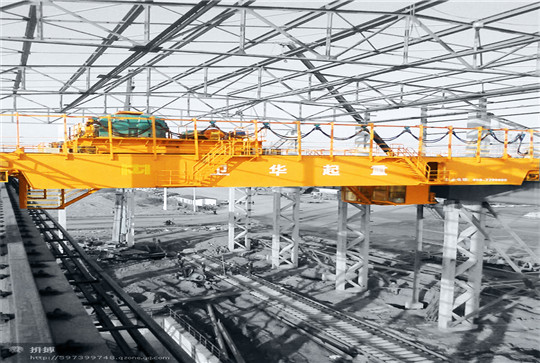

QD Model Double girder overhead Crane is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works. Capacity consist of 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/32T, 160/50T, 200/50T, 250/50T, 300/40T, 350/75T, 400/80T, 450/100T, 500/100T ---900T.



QD double girder overhead travelling crane are mainly consists of Girder frame, Crane travelling device, trolley as the lifting device and electrical parts, it is divided into 2 working grade of A5 and A6 according to the use frequency. Bridge adopts box welded structure, high degree of vertical and horizontal rigidity; crane travelling mechanism adopts separate drive. It has a strong beam and a stable travelling mechanism; the emergency switch can stop any movement once any dangerous happened.

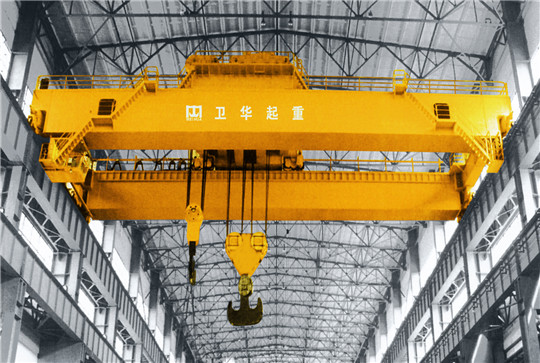

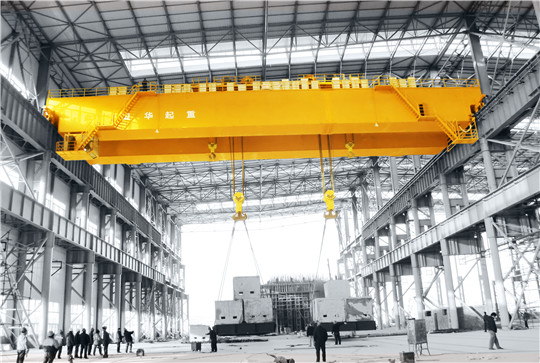

It is rely on the bridge frame along the workshop rail direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that mean two independent sets of hoisting mechanism. The main hook is used to lift heavy objects while the auxiliary used to lift light objects, the auxiliary can also be used for collaborative main hook tilting or tipping the material. However, don’t use the two hooks to lift at the same time when goods weight is over the auxiliary rated capacity.



It is an excellent choice where high speeds and heavy service are required for electric overhead travelling crane. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Weihua crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.



After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.

Wehua crane has a lot of honor for overhead crane certification for different overhead crane types.



If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.
