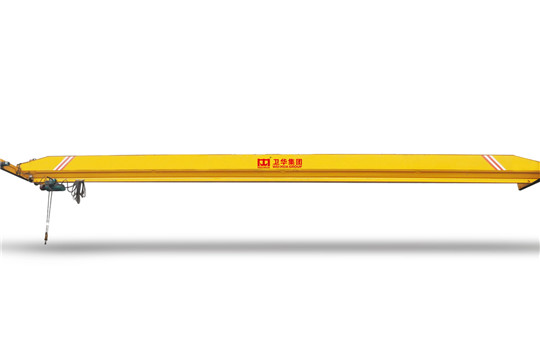

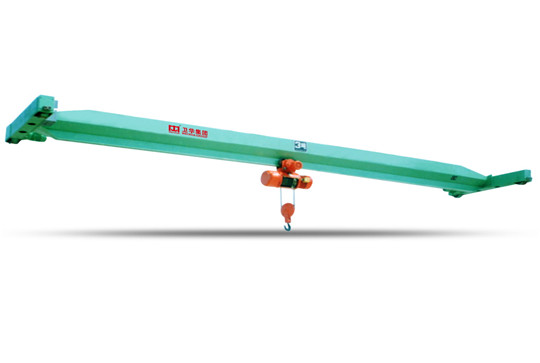

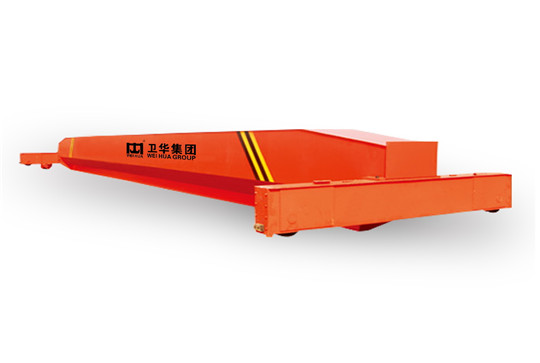

LDA model single girder overhead crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3. Working temperature is -25°C to 40°C.



It is widely used in plants, warehouse, and material stocks to lift goods.



It is matched with electric hoist which is CD model or MD model.



It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Double welding box girder, beam deflection with DIN/FEM standard

Steel Material: Chinese standard Q235B and Q345B

Trolley rail is made of high strength hot rolled flat steel (16 Mn)

Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster

The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine

The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate

Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.



1.Both side of all the steel plate of crane are pretreatment by pretreatment production line,

Sand blasting-- Primer spray--Primer drying. Eliminate the innerstress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and anticorrosion quality.



2. Steel plate cutting adapt whole sets Messer CNC plasma cutting machine from Germany, very fast cutting speed, little deformation, High precision,  Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.



3. The welding of main beam adapt high efficiency and intelligent welding robot, Weihua are No.1 enterprise who adapt this high technology machine. The welding joint inside of the main beam adapt advanced MAG welding, adapt Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adapt automatic submerged-arc fillet welding machine.



4. The welding of main beam adapt radiographic inspection and ultrasonic flaw detection for the welding joint and fillet weld position



5. The welding of end beam adapt double gun gantry submerged arc welding, highly welding quality ensure the stable quality of the crane effectively.



6. Adapt the steel plate rolling drum and wireless steel tube, Weihua has a set of steel plate rolling drum producing and processing line which is industry-leading level. From pre-bending by 1250t press machine, to Edge rolling by three-roller plate roll, at last the longitudinal joint and circumferential joint of drum are welded by automatic welding center and drum processed by heavy duty CNC horizontal machine tool.



7. The wheel and wheel axle and treating by high efficiency quenching and tempering, it can eliminate the internal stress effectively and ensure the processing precision,



The trolley frame, drum, and bogie frame and related big welding structure are treated by Annealing in the natural gas annealing furnace to ensure the Machining accuracy after welding. Weihua have car bottom natural gas annealing furnace, the furnace chamber inside size (length*width*heigh) is 10000mmx4000mmx4000mm, this annealing furnace can satisfy the Stress-Relieving annealing treatment after welding for the trolley frame, drum, bogie frame, balance beam, spreader and all kinds of welding structure on the crane, Only Weihua has this ability in China Crane Hometown.



8.Weihua has top advanced processing and manufacturing equipment and processing technology in the crane industry all over China, at the same time, Weihua take the head in achieve the best and better management, best and better manufacturing, Try the best to ensure the Weihua product quality and satisfy the demand of customer.

Electrics Parts

Hoist lifting, trolley and crane movements are controlled separately. They can run and lifting simultaneously or independently.

Specialized vibration control contactor for crane

The control panels are corrosion resistant, protection class is IP55

All the plug sockets are with heavy duty plug heads, reliable sealing and firm inserting

The layout of components in the control box is reasonable, easy to check and maintenance

Plug connection parts are protected by insulating plastic casing, very safety,

All cables are coded with numbers, easy to identify and final installation.

Power supply for crane long travelling include Bus bar (Slide wire) with suitable current collector.

The power supply system for trolley consists of insulated PVC flat cable, galvanized U type steel and small cable trolley to achieve smooth sliding

Equipped with protection function in case of default phase

Lifting Mechanism

Heavy duty trolley as lifting mechanism which can reach M8 working grade,
