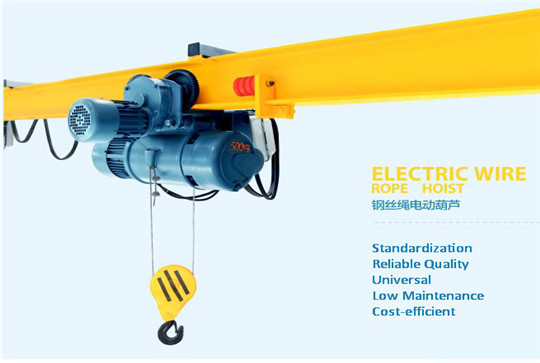

CD1/MD1 model wire rope electric hoist is a small-sized lifting equipment, it can be mounted on single girder overhead crane, single girder gantry crane and jib crane. It could also be used as a winch after slight modification. It is essential in raising working efficiency and improving working conditions, so it is widely used in factories, mines, harbors, warehouse, cargo storage areas and shops.



CD1 model wire rope electric hoist can satisfy normal application as it has only one normal speed, while MD1 model electric hoist provides two speeds: normal speed and low speed. With low speed, precise loading and unloading can be done, die assembly of sand box, maintenance of machine tools, etc, hence, MD1 model electric hoist is more widely used than CD1 model.



To meet the needs of lifting heavier cargo, our factory also manufactures HC model big capacity electric hoist.



Wire rope Electric Hoist applies to such an environment as no explosive danger, no fire, no corrosive media and no dirt exist. The elevation is below 1000m, the wetness is no higher than 85%, the temperature is between 20℃ below zero and 40℃ above zero. It is banned to lift poisonous, melted metals, combustible and explosive objects. The applicable power source is 380v~660v, 50 Hz or 60 Hz , 3Ph.

The roller is made of high-quality seamless pipes and transmits power through spline. Its case is made of welded steel plate. This is the core part of the hoist.



The hook is forged and connected to the pulley assembly through thrust ball bearing, so the hook can rotate freely.

Hooks no more than 5ton lifting capacity are of single-pulley style and above 10ton is double-pulley style.



Adopts high strength wire rope with tensile strength of 1770 Mpa,, good safety performance and long service life.



Standard rope guide is made of Q235b steel.



The hoisting motor with large tractive force is employed to comply with the frequent direct traveling during course of working discontinuously.

CD1 model wire rope electric hoist is equipped with ZD style single speed motor, while MD1 is equipped with ZDS style double speed motor.

The difference between the usual speed and the low speed is 10:1.



The gear and axes are made of alloy steel or qualified carbon-steel. All reducers adopt 3-level bevel gear. Proper heat treatment is conducted to ensure their reliability and service life. Finally, the box-body and box-cover are made of cast-iron. Both are well shake-reducing and sealed tightly.

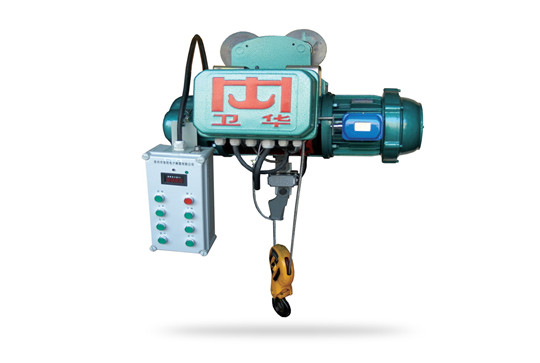

The electrical mechanism consists of electric control box, limiter, button switch, connecting wire etc.

According to the marked direction on the button switch, press the button correctly and control the hoist through the on-and-off of the relay in the control box. The operating voltage is usually 36V.



* The accurate gear drive limiter is used as upper and lower limit, which can reliably cut off power circuit if hook moves to the upper or lower limit so as to stop the motor.

* Overload protector: the electric wire rope hoist is using electronic overload protector, so that the total lifting weight will not exceed the rated lifting weight; if the pulling force of steel rope is more than 105% of the rated capacity, the overload protector device would automatic cut off lifting loop.

* Emergency stop protection

* Over-heat protection of hoisting motor

* Over-current protection

* Phase protection

* Voltage lower protection



a.36V control voltage safety for human being.

b.Easy to control, no additional driver necessary, operate following the travelling of hoist

c.Double step button with emergency to achieve safety stop

d.Connected with the electric trolley suspended under trolley

e.Protection class IP54 IP55

f.Operation life not less than 500,000 times



a.Taiwan Yuding or world famous brand,

b.24V control voltage safety for human being.

c.Remote distance: not less than 100 meters,

d.Easy to control, no additional driver necessary, to operate more freely on the ground

e.Tens of thousands of connection frequency points, non-interference with each other

f.Two steps push button or joystick station with emergency stop.

g.Protection class IP54 IP55

h.Operation life: not less than 500,000 times



a.GB3811 GB6067 JB/T9008.1~9008.2
